Manufactured for Syntegon

Steam Sterilisation > Steriklenz^®

The Process

Klenzaids expands on its portfolio of dry heat and biodecon sterilization technologies by re-embracing moist heat sterilization. Introducing SteriKlenz^® supported by Schoeller-Bleckmann Medizintechnik (SBM a 100% Syntegon company). In the first phase, Vacuum steam sterilizers will be built in Klenzaids India to SBM specifications. These are qualified for the most stringent of regulatory mandates and gold standards set by SBM. Klenzaids is organised to supply and support these within the Indian subcontinent directly and globally thru SBM and Syntegon Technologies GmbH worldwide locations. Introducing this product is in keeping with Klenzaids and Syntegon joint venture to provide globally viable value offerings.

The Application

Sterilisation of equipment and porous loads through vacuum steam process (HPHV)

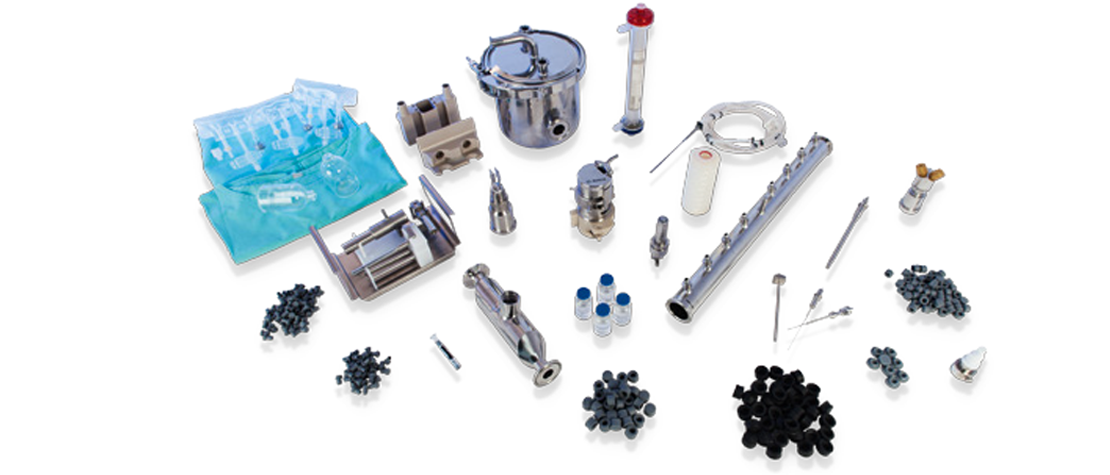

Machine parts, textiles, filters and other equipment | Empty containers (glass, metal or plastic) | Rubber stoppers and caps in bags

The Product

Product Feature	Customer Benefit
ASME approved	Well accepted global standard
Built to SBM specifications	More than 45 years’ experience with designing and building moist heat sterilizers
Chamber and Jacket in 316L stainless steel	No corrosion and longer chamber/jacket life-time
3 standard sizes	Short delivery time
Fractionated pre-vacuum process with vacuum drying	To assure sterility and 100% dryness
Automated sliding door (single or double) with encapsulated door drive	Flexibility to your layout and no particle generation in clean room areas and 100% maintenance free
Gas tight bio seal clean room interface	Separation of clean room classes according to GMP
Full GMP documentation	Fast approval with local authorities
KontrolKlenz automation with batch reporting	GMP compliance including audit trail and more functions for your flexibility
Freely programmable recipe editor	Customer independence from the supplier
Standard components	Available worldwide (lower spare part costs and fast availability)

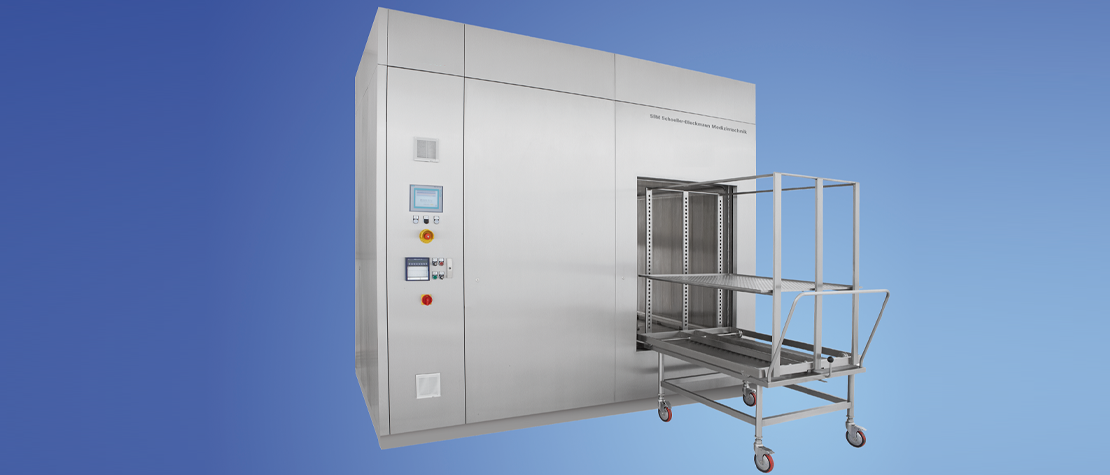

Reference Image

Value adds:

CE/UL marked when specified
Automatic filter inline sterilization
316L stainless steel filter housing
Utility monitoring
Different and flexible cart design
Electrical steam generator
Extensive software and building automation support

The Models

SteriKlenz^®	06.06.09	09.06.09	12.09.12
Height (mm)	600	900	1200
Width (mm)	600	600	900
Depth (mm)	900	900	1200

Note: Klenzaids recommends models based on user specifications, ergonomics, ease of install, qualification & re-qualification and based on numerous global installations over 4 decades.

The Gallery

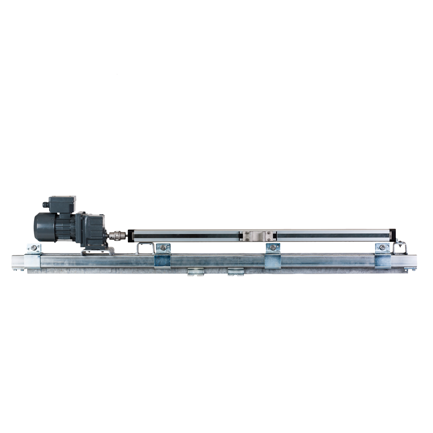

Door drive

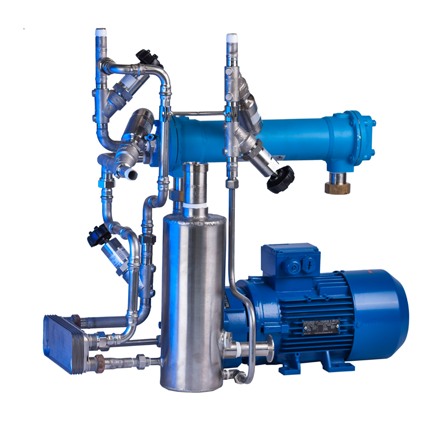

Vacuum pump

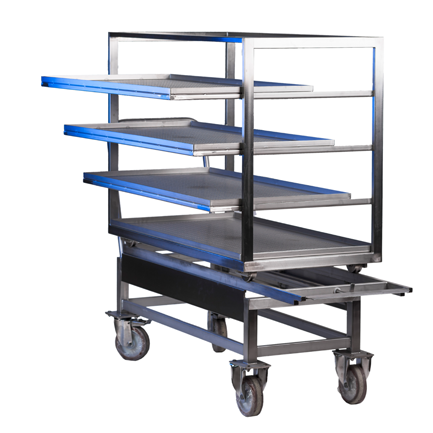

Loading cart with Trolley

Syntegon Technologies GmbH is a leading global process and packaging technology provider. Formerly the packaging division of the Bosch Group, the company, headquartered in Waiblingen (Germany), has been offering complete solutions for the pharmaceutical and food industries for over 50 years. More than 6,100 employees at 30 locations in more than 15 countries generated a total revenue of 1.3 billion euros in 2019. The portfolio of intelligent and sustainable technologies includes stand-alone machines, as well as complete systems and services. Fields of application in the pharmaceutical industry are the production, processing, filling, inspection and packaging of liquid and solid pharmaceuticals (e.g. syringes and capsules). In the food industry, the portfolio includes process technology for confectionery as well as packaging solutions for dry foods (e.g. bars, bakery products and coffee), frozen foods and dairy products.
