The Process

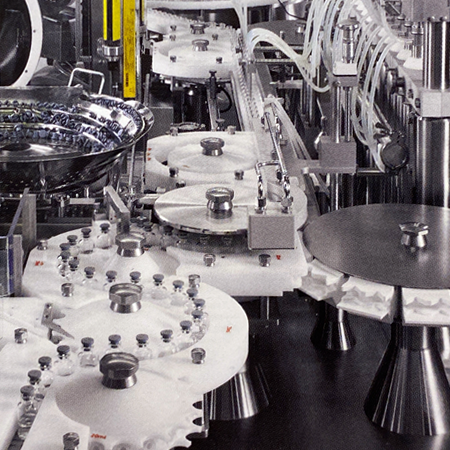

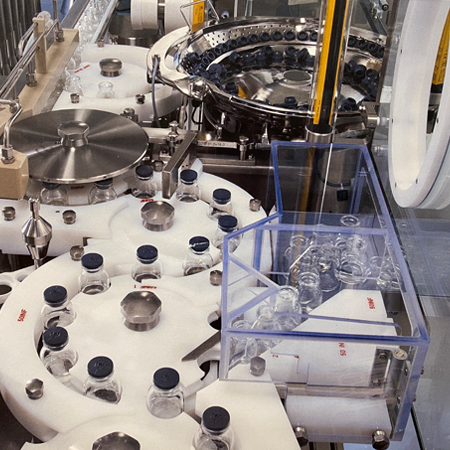

With its impressive processing range of fill volumes from 0.5 to 100 ml, the FLC licensed from Syntegon Technologies GmbH caters to flexible demands of modern aseptic parenteral packaging. Its gentle and repeatable continuous motion system makes the FLC a risk free process part of the line. Quintessentially the most crucial part of the Aseptic line the FLC delivers quality assured results. In pairing with AquaKlenz washer and PyroKlenz® tunnel upstream and VRK capper downstream this injectable line is truly exemplary and a value benchmark for the region.

The Product

  • Upto 400 CPM thruputs
  • Range 2ml to 100ml
  • Full servo drives
  • Infeed gentle motion turntable for effective container delivery
  • Linear container transport system
  • Ideal for Aseptic filling and stoppering under UDAF
  • Tool less part fits
  • Continous motion filling station
  • Flexible filling
  • Clean feed & low particles stoppering station
  • Rejection station for defects segregation
    Value adds:
  • CE marked when specified
  • Special Infeeds
  • CIP/SIP
  • Time pressure fill (TPF)
  • Peristaltic pumps from Syntegon Technologies GmbH
  • Gas Flushing
  • Check weighing
  • KlenzFlo® ORABS
  • IsoKlenz® CRABS
  • IsoKlenz® Isolator with KlenzVap biodecon & Cycle Development/Cycle Validation (CD/CV)
  • Hermetic tunnel interface
  • RTP transfer systems and related appurtenances
  • GAMP 5

The Video

The Models

FLC value 3040 3060 3080 3120
Filling heads 4/2 6/3 8/4 6/12
Processing range Ø (mm) 14 - 86 14 - 86 14 - 86 14 - 86
Processing range container height (mm) 180 180 180 180
Filling range (ml) 0.2 - 500 0.2 - 500 0.2 - 500 0.2 - 500
Output/h 200 300 400 600
Note: Klenzaids recommends models based on user specifications, ergonomics, ease of install, qualification & re-qualification and based on numerous global installations over 4 decades.
